[2025年05月07日] 有効なN10-009テスト解答とCompTIA N10-009試験PDF問題を試そう
実際に出るN10-009試験問題集には正確で更新された問題
CompTIA N10-009 認定試験の出題範囲：
| トピック | 出題範囲 |
|---|---|
| トピック 1 |
|
| トピック 2 |
|
| トピック 3 |
|
| トピック 4 |
|
| トピック 5 |
|
質問 # 41
A virtual machine has the following configuration:
*IPv4 address: 169.254.10.10
*Subnet mask: 255.255.0.0
The virtual machine can reach colocated systems but cannot reach external addresses on the Internet. Which of the following Is most likely the root cause?
- A. TheDNS server is unreachable.
- B. TheIP address is an RFC1918 private address.
- C. TheDHCP server is offline.
- D. Thesubnet mask is incorrect.
正解：C
解説：
* Understanding the 169.254.x.x Address:
* An IPv4 address in the range of 169.254.x.x is an Automatic Private IP Addressing (APIPA) address, assigned when a DHCP server is unavailable.
* DHCP Server Offline:
* APIPA Assignment:When a device cannot obtain an IP address from a DHCP server, it assigns itself an APIPA address to enable local network communication. This allows communication with other devices on the same local subnet but not with external networks.
* Resolution:Ensure the DHCP server is operational. Check for connectivity issues between the virtual machine and the DHCP server, and verify the DHCP server settings.
* Comparison with Other Options:
* The subnet mask is incorrect:The subnet mask 255.255.0.0 is appropriate for the 169.254.x.x range and does not prevent external access by itself.
* The IP address is an RFC1918 private address:RFC1918 addresses are private IP ranges (10.x.x.x, 172.16.x.x-172.31.x.x, 192.168.x.x) but 169.254.x.x is not one of them.
* The DNS server is unreachable:While this could affect name resolution, it would not prevent the assignment of a non-APIPA address or local network communication.
* Troubleshooting Steps:
* Verify the DHCP server's status and connectivity.
* Restart the DHCP service if necessary.
* Renew the IP lease on the virtual machine using commands such asipconfig /renew(Windows) ordhclient(Linux).
References:
* CompTIA Network+ study materials on IP addressing and DHCP troubleshooting.
質問 # 42
After installing a series of Cat 8 keystones, a data center architect notices higher than normal interference during tests. Which of the following steps should the architect take to troubleshoot the issue?
- A. Connect the RX/TX wires to different pins.
- B. Run a speed test on a device that can only achieve 100Mbps speeds.
- C. Use passthrough modular crimping plugs instead of traditional crimping plugs.
- D. Check to see if the end connections were wrapped in copper tape before terminating.
正解：D
解説：
* Importance of Proper Termination:
* Cat 8 cabling requires precise termination practices to ensure signal integrity and reduce interference. One common requirement is to wrap the end connections in copper tape to maintain shielding and reduce electromagnetic interference (EMI).
* Interference Troubleshooting:
* Interference in high-frequency cables like Cat 8 can be caused by improper shielding or grounding. Checking the end connections for proper wrapping in copper tape is a crucial step.
* Why Other Options are Less Likely:
* Passthrough modular crimping plugs:Not specifically related to interference issues and are typically used for ease of cable assembly.
* Connecting RX/TX wires to different pins:Would likely result in no connection or incorrect data transmission rather than interference.
* Running a speed test on a device that can only achieve 100Mbps speeds:This would not diagnose interference and would not provide relevant information for Cat 8 cabling rated for higher speeds.
* Corrective Actions:
* Verify that all end connections are properly wrapped with copper tape before termination.
* Ensure that the shielding is continuous and properly grounded throughout the installation.
* Retest the cabling for interference after making corrections.
References:
* CompTIA Network+ study materials and structured cabling installation guides.
質問 # 43
Which of the following are environmental factors that should be considered when installing equipment in a building? (Select two).
- A. Proximity to nearest MDF
- B. Humidity control
- C. Fire suppression system
- D. Floor construction type
- E. Power load
- F. UPS location
正解：C
解説：
When installing equipment in a building, environmental factors are critical to ensure the safety and longevity of the equipment. A fire suppression system is essential to protect the equipment from fire hazards. Humidity control is crucial to prevent moisture-related damage, such as corrosion and short circuits, which can adversely affect electronic components. Both factors are vital for maintaining an optimal environment for networking equipment.
Reference: CompTIA Network+ study materials.
質問 # 44
A client with a 2.4GHz wireless network has stated that the entire office is experiencing intermittent issues with laptops after the WAP was moved. Which of the following is the most likely reason for these issues?
- A. A microwave is in the office.
- B. The network uses a non-overlapping channel.
- C. The signal is reflecting too much.
- D. The network has excessive noise.
正解：A
解説：
Microwaves are known to interfere with the 2.4GHz frequency, which is the same frequency used by many wireless networks. This can cause signal degradation and intermittent connectivity issues, especially if the WAP is placed near such devices.
質問 # 45
Which of the following is a cost-effective advantage of a split-tunnel VPN?
- A. Web traffic is filtered through a web filter.
- B. Monitoring detects insecure machines on the company's network.
- C. More bandwidth is required on the company's internet connection.
- D. Cloud-based traffic flows outside of the company's network.
正解：D
解説：
A split-tunnel VPN allows some traffic to be routed through the VPN while other traffic goes directly to the internet. This setup offers several advantages, with a primary one being cost-effectiveness due to cloud-based traffic not consuming company bandwidth.
* Bandwidth Utilization: Split-tunnel VPNs reduce the amount of traffic passing through the company's network, freeing up bandwidth for other uses.
* Performance: By allowing internet-bound traffic to bypass the VPN, it can reduce latency and improve the performance for users accessing cloud services directly.
* Cost Savings: Reduced load on the company's VPN infrastructure can lead to lower costs in terms of both hardware and bandwidth.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide: Covers VPN types, including split-tunnel configurations and their advantages.
* Cisco Networking Academy: Discusses VPN technologies and the benefits of split-tunneling.
* Network+ Certification All-in-One Exam Guide: Provides detailed information on VPN setups, including the cost-effectiveness of split-tunnel VPNs.
By allowing cloud-based traffic to flow outside the company's network, a split-tunnel VPN optimizes resource usage and enhances the overall network performance without incurring extra costs for bandwidth.
質問 # 46
Which of the following most likely determines the size of a rack for installation? (Select two).
- A. Hard drive size
- B. KVM size
- C. Outlet amperage
- D. Switch depth
- E. Cooling fan speed
- F. Server height
正解：D
解説：
Understanding Rack Size Determination:
The size of a rack for installation is determined by the dimensions of the equipment to be housed in it, primarily focusing on the depth and height of the devices.
Switch Depth:
Depth of Equipment: The depth of network switches and other rack-mounted devices directly influences the depth of the rack. If the equipment is deeper, a deeper rack is required to accommodate it.
Industry Standards: Most racks come in standard depths, but it is essential to match the depth of the rack to the deepest piece of equipment to ensure proper fit and airflow.
Server Height:
Height of Equipment: The height of servers and other devices is measured in rack units (U), where 1U equals 1.75 inches. The total height of all equipment determines the overall height requirement of the rack.
Rack Units: A rack's height is typically described in terms of the number of rack units it can accommodate, such as 42U, 48U, etc.
Why Other Options are Less Relevant:
KVM Size: While important for management, KVM (Keyboard, Video, Mouse) switches do not typically determine rack size.
Hard Drive Size: Individual hard drives are installed within servers or storage devices, not directly influencing rack dimensions.
Cooling Fan Speed: Fan speed affects cooling but not the physical size of the rack.
Outlet Amperage: Power requirements do not determine rack dimensions but rather the electrical infrastructure supporting the rack.
Reference:
CompTIA Network+ study materials on rack installation and equipment sizing.
質問 # 47
A technician needs to set up a wireless connection that utilizes MIMO on non-overlapping channels. Which of the following would be the best choice?
- A. 802.11b
- B. 802.11n
- C. 802.11g
- D. 802.11a
正解：B
解説：
The 802.11n standard supports MIMO (Multiple Input Multiple Output), which allows multiple antennas to increase data throughput and improve reliability. Additionally, it uses non-overlapping channels in the 5 GHz band (and optionally the 2.4 GHz band), making it a good choice for high-speed, interference-resistant wireless connections. (Reference: CompTIA Network+ Study Guide, Chapter on Wireless Technologies)
質問 # 48
SIMULATION
Users are unable to access files on their department share located on flle_server 2. The network administrator has been tasked with validating routing between networks hosting workstation A and file server 2.
INSTRUCTIONS
Click on each router to review output, identity any Issues, and configure the appropriate solution If at any time you would like to bring back the initial state of trie simulation, please click the reset All button;
正解：
解説：
See the solution configuration below in Explanation.
質問 # 49
SIMULATION
A network technician replaced an access layer switch and needs to reconfigure it to allow the connected devices to connect to the correct networks.
INSTRUCTIONS
Click on the appropriate port(s) on Switch 1 and Switch 3 to verify or reconfigure the correct settings:
* Ensure each device accesses only its
correctly associated network.
* Disable all unused switchports.
. Require fault-tolerant connections
between the switches.
. Only make necessary changes to
complete the above requirements.
正解：
解説：
See the solution below in Explanation
Explanation:
To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:
Identify the correct VLANs for each device and port.
Enable necessary ports and disable unused ports.
Configure fault-tolerant connections between the switches.
Configuration Details
Switch 1
Port 1 Configuration (Uplink to Core Switch)
Status: Enabled
LACP: Enabled
Speed: 1000
Duplex: Full
VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 2 Configuration (Uplink to Core Switch) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 3 Configuration (Server Connection) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN90 (Servers) Port 4 Configuration (Server Connection) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN90 (Servers) Port 5 Configuration (Wired Users and WLAN) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150 Port 6 Configuration (Wired Users and WLAN) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150 Port 7 Configuration (Voice and Wired Users) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220 Port 8 Configuration (Voice, Printers, and Wired Users) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220 Switch 3 Port 1 Configuration (Unused) Status: Disabled LACP: Disabled Port 2 Configuration (Unused) Status: Disabled LACP: Disabled Port 3 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Port 4 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Port 5 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Port 6 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Port 7 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Summary of Configurations Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.
Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.
Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.
Unused ports on Switch 3 are disabled.
Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.
Ensure All Switches and Ports are Configured as per the Requirements:
Core Switch Ports should be configured as needed for uplinks to Switch 1.
Ensure LACP is enabled for redundancy on trunk ports between switches.
By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.
質問 # 50

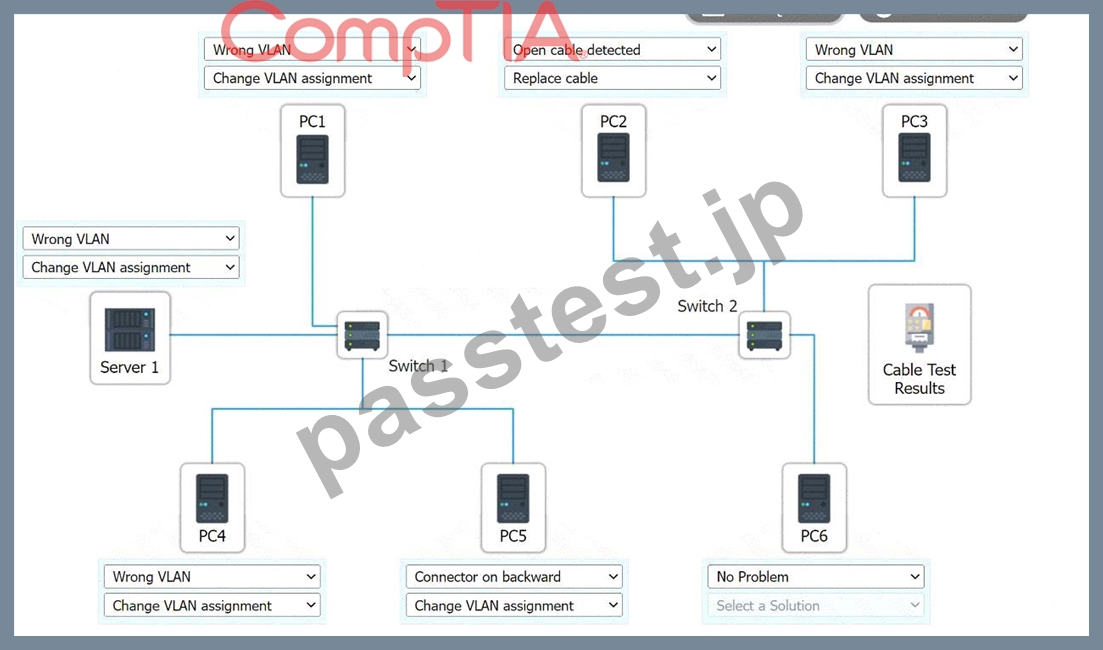

A network technician needs to resolve some issues with a customer's SOHO network. The customer reports that some of the PCs are not connecting to the network, while others appear to be working as intended.
INSTRUCTIONS
Troubleshoot all the network components.

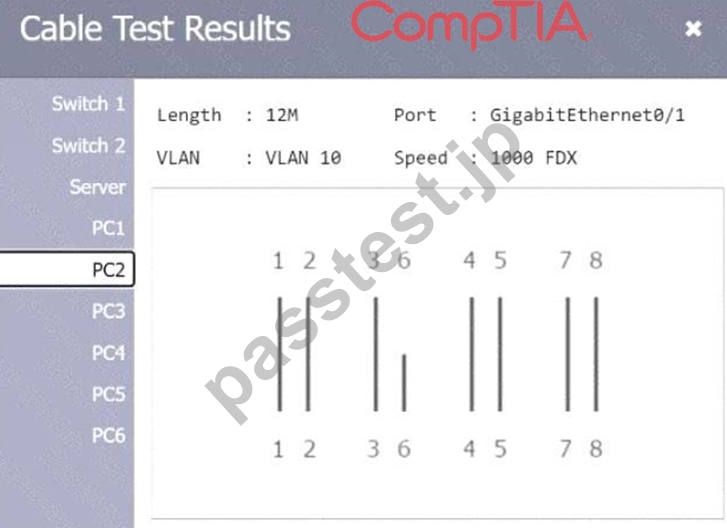

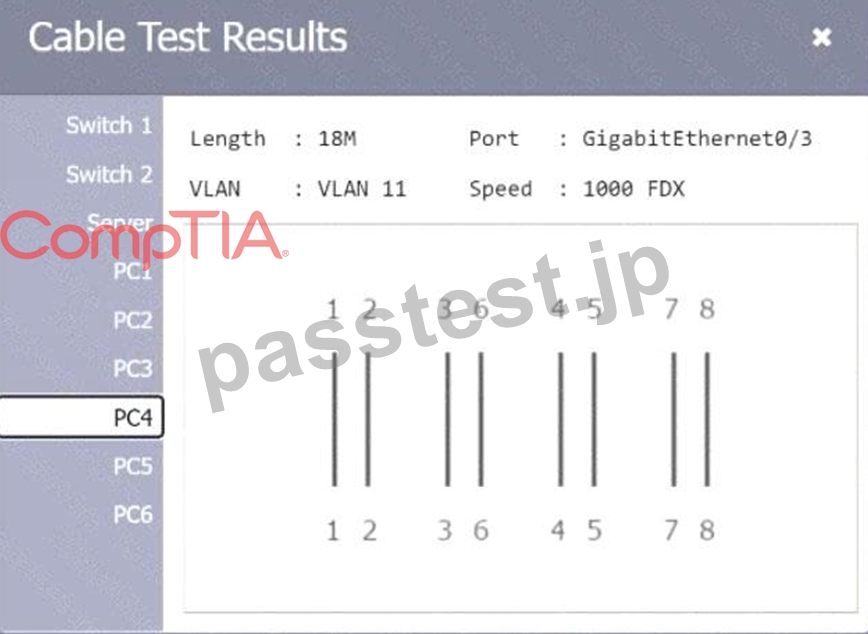

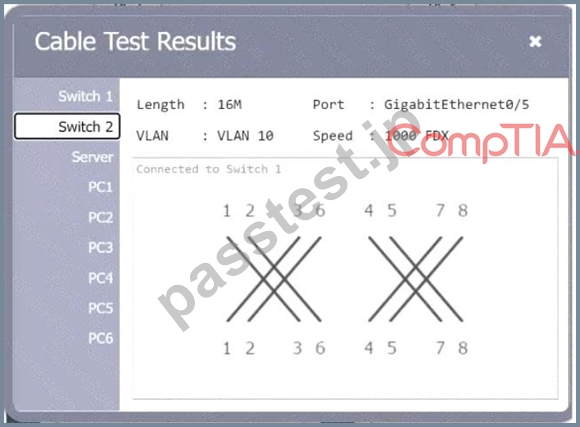

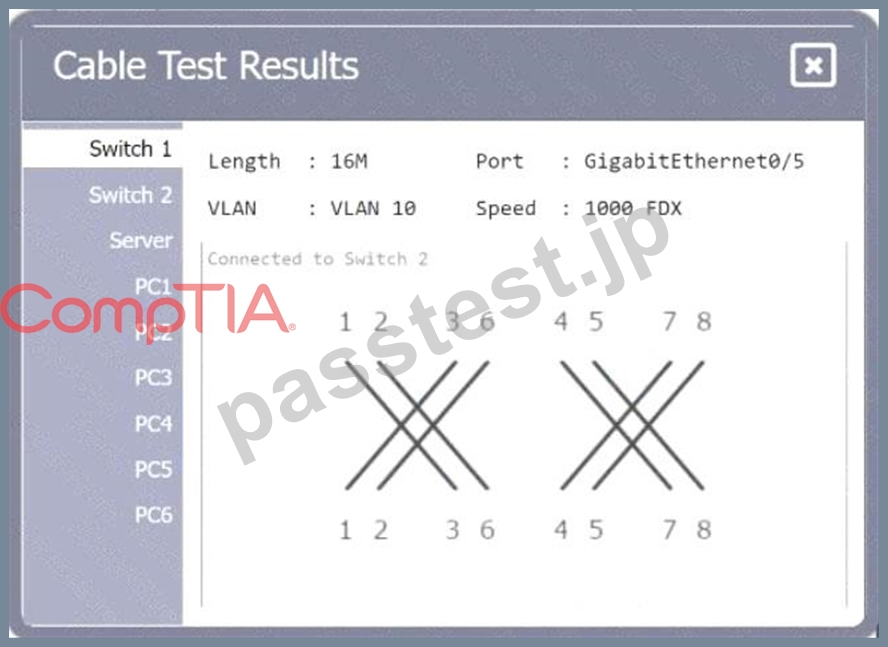

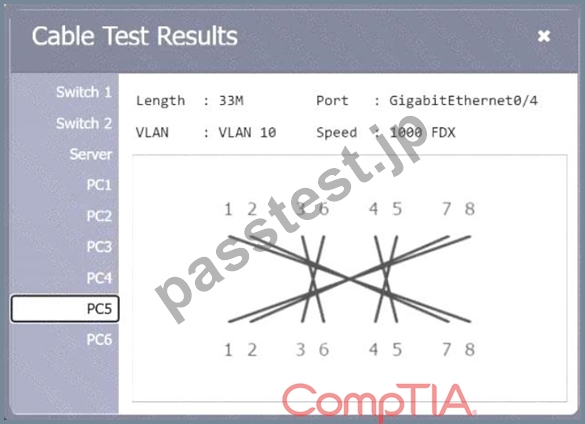

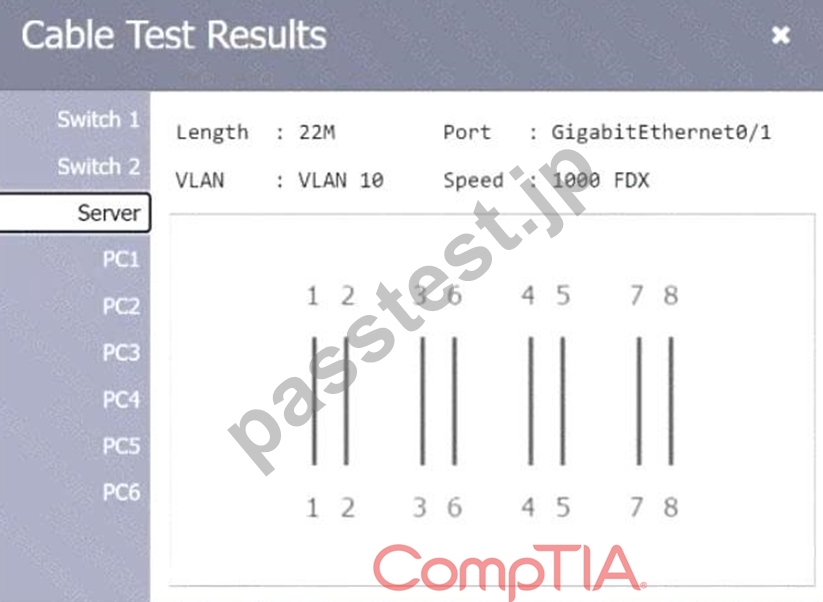

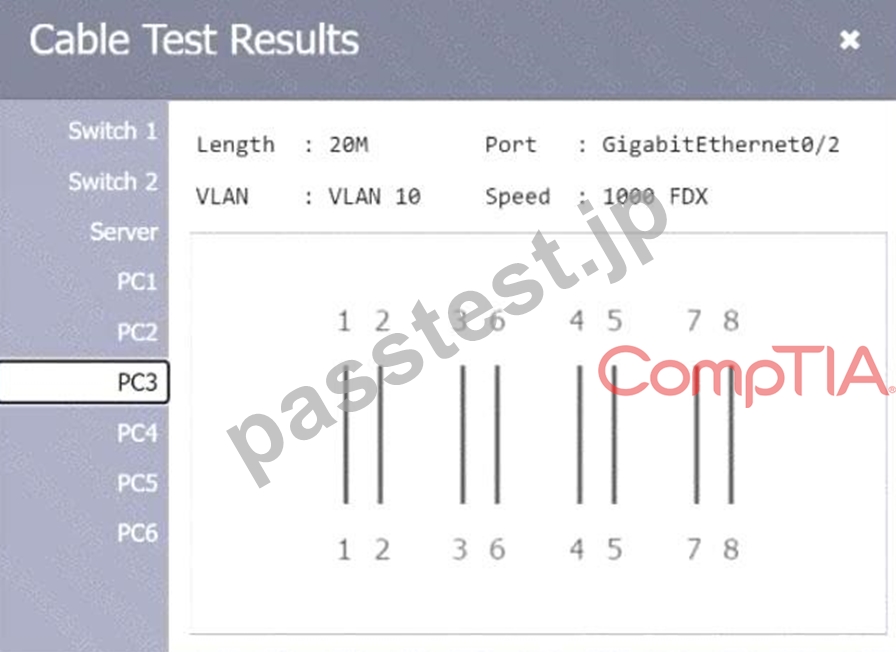

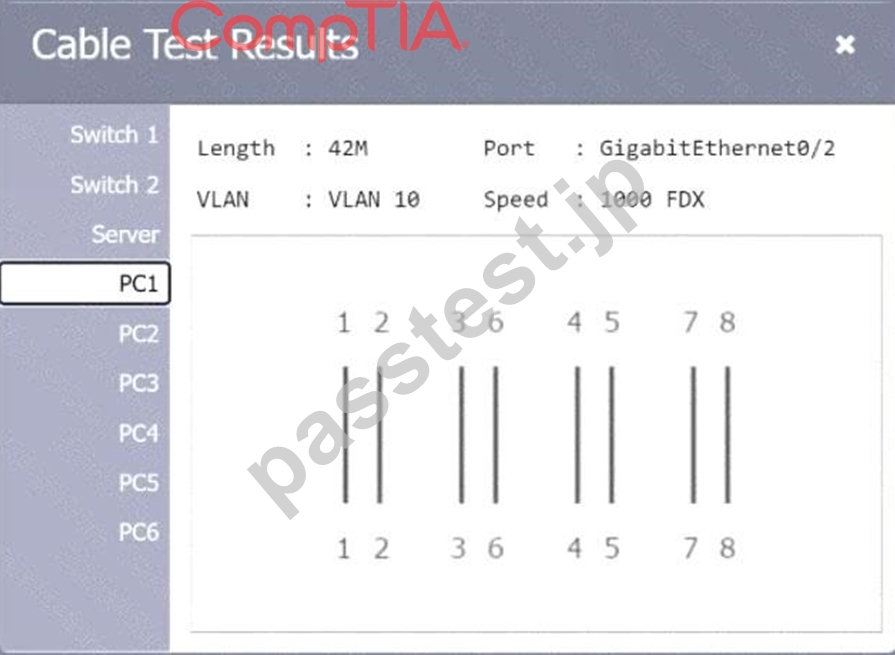

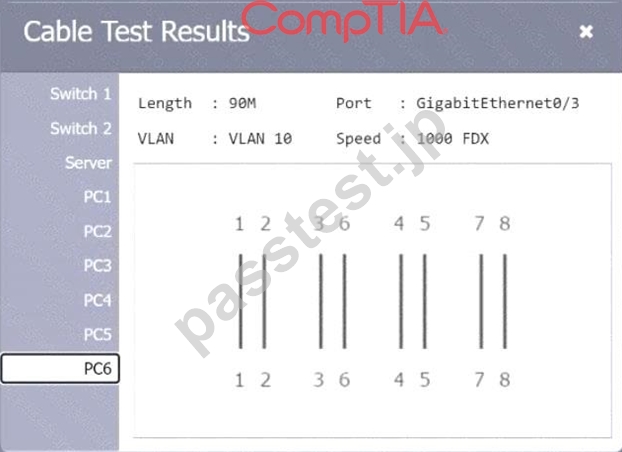

Review the cable test results first, then diagnose by clicking on the appropriate PC, server, and Layer 2 switch.
Identify any components with a problem and recommend a solution to correct each problem.
If at any time you would like to bring back
the initial state of the simulation, please
click the Reset All button.
正解：
解説：
See the answer and solution below:
質問 # 51
An organization wants to ensure that incoming emails were sent from a trusted source. Which of the following DNS records is used to verify the source?
- A. CNAME
- B. MX
- C. TXT
- D. AAAA
正解：C
解説：
Explanation: A TXT record can be used to store SPF (Sender Policy Framework) and DKIM (DomainKeys Identified Mail) information, which help verify that an email has been sent from a trusted source.
質問 # 52
A network administrator wants to configure a backup route in case the primary route fails. A dynamic routing protocol is not installed on the router. Which of the following routing features should the administrator choose to accomplish this task?
- A. Neighbor adjacency
- B. Link state flooding
- C. Administrative distance
- D. Hop count
正解：C
解説：
* Introduction to Administrative Distance
* Administrative distance (AD) is a value used by routers to rank routes from different routing protocols. AD represents the trustworthiness of the source of the route. Lower AD values are more preferred. If a router has multiple routes to a destination from different sources, it will choose the route with the lowest AD.
* Static Routes and Backup Routes
* When a dynamic routing protocol is not used, static routes can be employed. Static routes are manually configured routes. To ensure a backup route, multiple static routes to the same destination can be configured with different AD values.
* Configuring Static Routes with Administrative Distance
* The primary route is configured with a lower AD value, making it the preferred route. The backup route is configured with a higher AD value. In the event of the primary route failure, the router will then use the backup route.
* Example Configuration:
plaintext
Copy code
ip route 192.168.1.0 255.255.255.0 10.0.0.1 1
ip route 192.168.1.0 255.255.255.0 10.0.0.2 10
* In the above example,192.168.1.0/24is the destination network.
* 10.0.0.1is the next-hop IP address for the primary route with an AD of 1.
* 10.0.0.2is the next-hop IP address for the backup route with an AD of 10.
* Verification:
* After configuration, use theshow ip routecommand to verify that the primary route is in use and the backup route is listed as a candidate for use if the primary route fails.
References:
* CompTIA Network+ guide explains the concept of administrative distance and its use in static routing configuration (see pageRef 9†Basic Configuration Commands).
質問 # 53
A network administrator needs to connect two routers in a point-to-point configuration and conserve IP space.
Which of the following subnets should the administrator use?
- A. /30
- B. /26
- C. 0
- D. /28
正解：A
解説：
Using a /30 subnet mask is the most efficient way to conserve IP space for a point-to-point connection between two routers. A /30 subnet provides four IP addresses, two of which can be assigned to the router interfaces, one for the network address, and one for the broadcast address. This makes it ideal for point-to-point links where only two usable IP addresses are needed.References:CompTIA Network+ study materials and subnetting principles.
質問 # 54
A network technician was recently onboarded to a company. A manager has tasked the technician with documenting the network and has provided the technician With partial information from previous documentation.
Instructions:

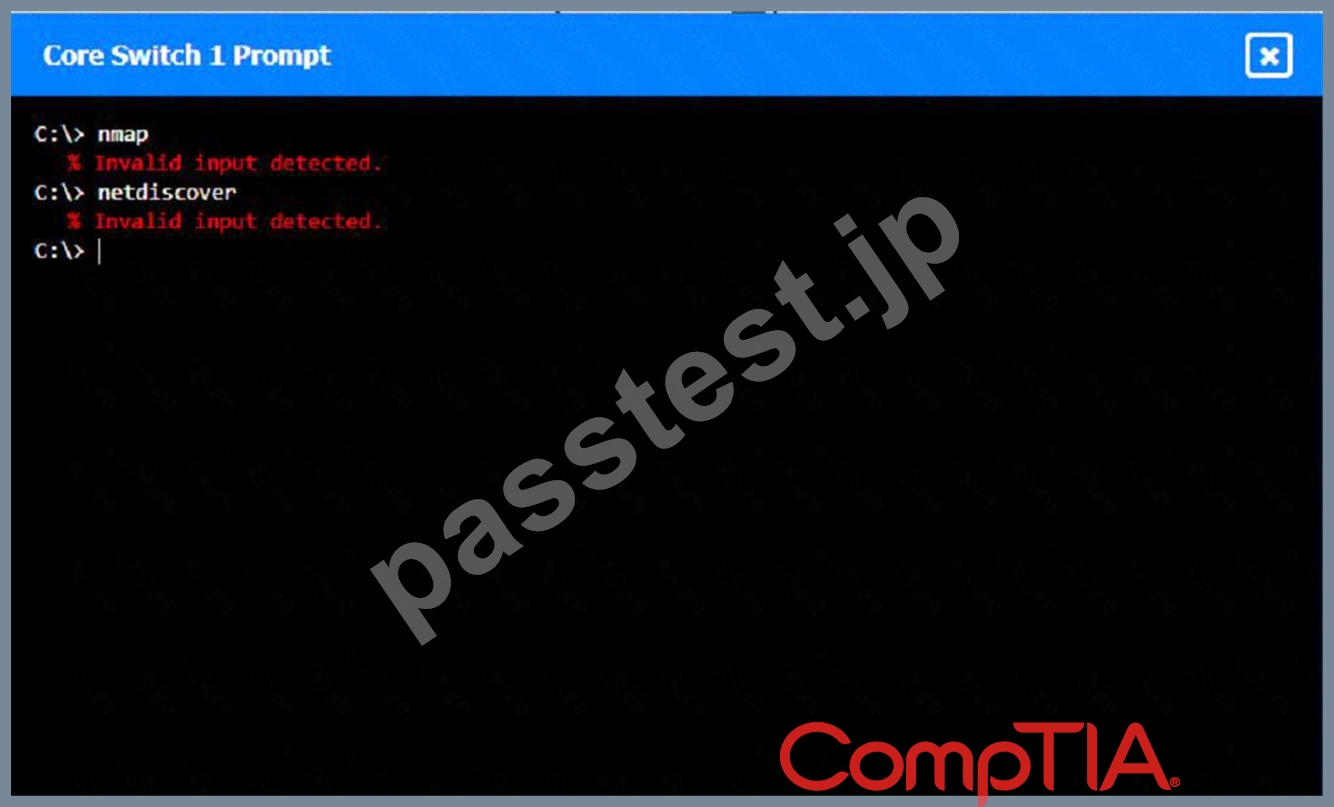

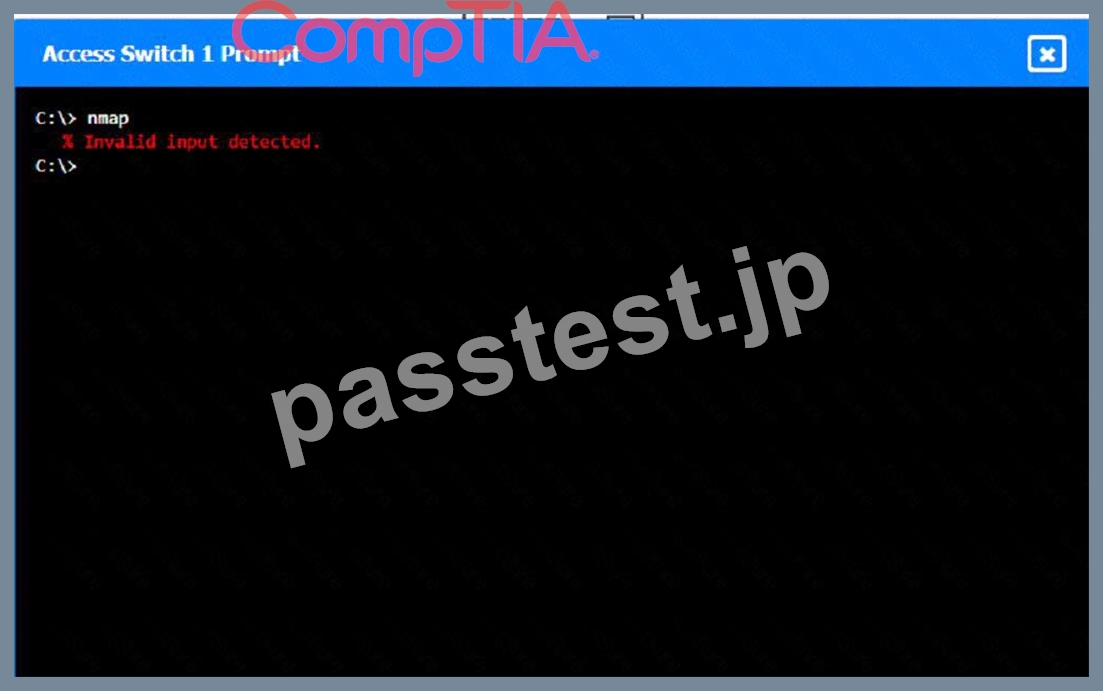

Click on each switch to perform a network discovery by entering commands into the terminal. Fill in the missing information using drop-down menus provided.
正解：
解説：
See the Explanation for detailed information on this simulation.
Explanation:
(Note: Ips will be change on each simulation task, so we have given example answer for the understanding) To perform a network discovery by entering commands into the terminal, you can use the following steps:

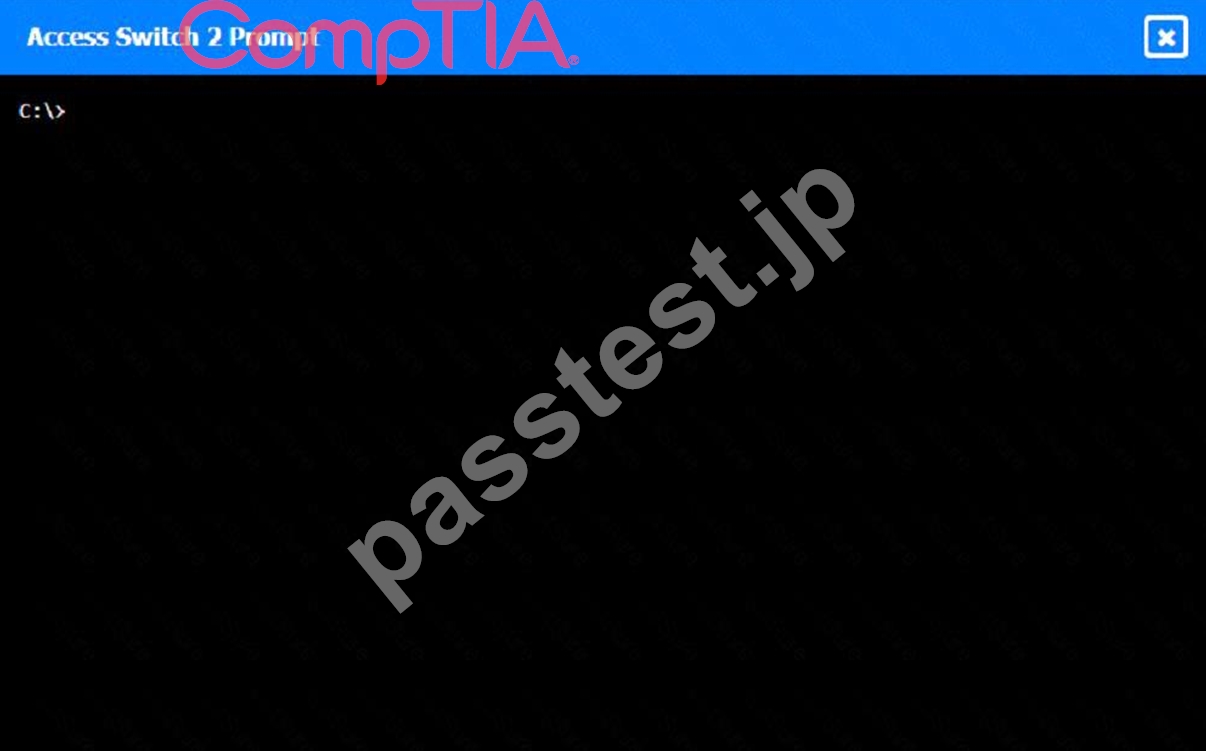

* Click on each switch to open its terminal window.
* Enter the command show ip interface brief to display the IP addresses and statuses of the switch interfaces.
* Enter the command show vlan brief to display the VLAN configurations and assignments of the switch interfaces.
* Enter the command show cdp neighbors to display the information about the neighboring devices that are connected to the switch.

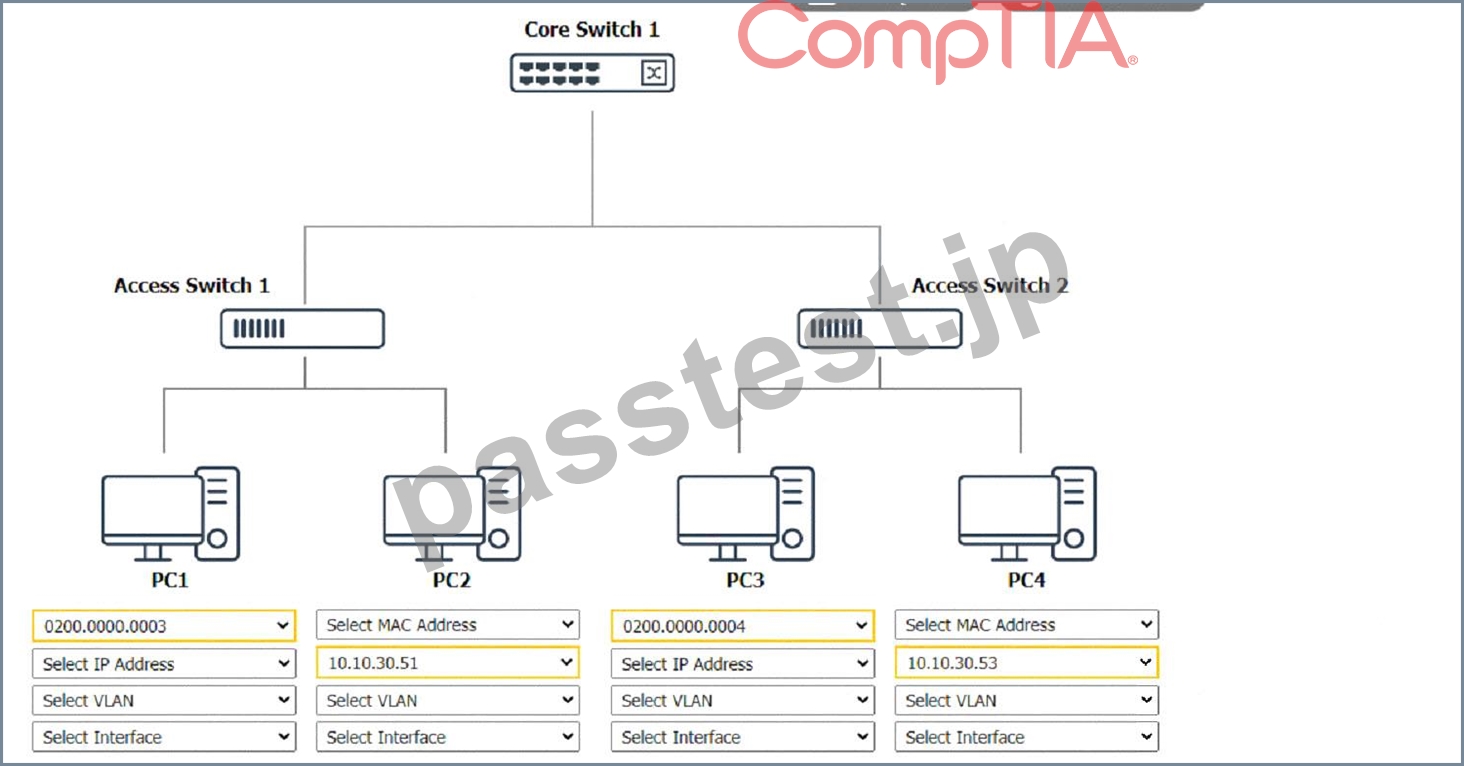

* Fill in the missing information in the diagram using the drop-down menus provided.
Here is an example of how to fill in the missing information for Core Switch 1:
* The IP address of Core Switch 1 is 192.168.1.1.
* The VLAN configuration of Core Switch 1 is VLAN 1: 192.168.1.0/24, VLAN 2: 192.168.2.0/24, VLAN 3: 192.168.3.0/24.
* The neighboring devices of Core Switch 1 are Access Switch 1 and Access Switch 2.
* The interfaces that connect Core Switch 1 to Access Switch 1 are GigabitEthernet0/1 and GigabitEthernet0/2.
* The interfaces that connect Core Switch 1 to Access Switch 2 are GigabitEthernet0/3 and GigabitEthernet0/4.
You can use the same steps to fill in the missing information for Access Switch 1 and Access Switch 2.
質問 # 55
A company receives a cease-and-desist order from its ISP regarding prohibited torrent activity. Which of the following should be implemented to comply with the cease-and-desist order?
- A. Perimeter network
- B. Content filtering
- C. MAC security
- D. Screened subnet
正解：B
解説：
Content filtering can be used to block or restrict access to websites and services that facilitate torrenting and other prohibited activities. By implementing content filtering, the company can comply with the ISP's cease-and-desist order and prevent users from accessing torrent sites and engaging in prohibited activities.
Reference: CompTIA Network+ study materials.
質問 # 56
A customer recently moved into a new office and notices that some wall plates are not working and are not properly labeled Which of the following tools would be best to identify the proper wiring in the IDF?
- A. Visual fault locator
- B. Network tap
- C. Toner and probe
- D. Cable tester
正解：C
解説：
A toner and probe tool, also known as a tone generator and probe, is used to trace and identify individual cables within a bundle or to locate the termination points of cables in wiring closets and patch panels. It generates a tone that can be picked up by the probe, helping technicians quickly and accurately identify and label wall plates and wiring. This is the best tool for identifying proper wiring in the Intermediate Distribution Frame (IDF). Reference: CompTIA Network+ Exam Objectives and official study guides.
質問 # 57
A network administrator for a small office is adding a passive IDS to its network switch for the purpose of inspecting network traffic. Which of the following should the administrator use?
- A. API integration
- B. SNMP trap
- C. Port mirroring
- D. Syslog collection
正解：C
解説：
Port mirroring, also known as SPAN (Switched Port Analyzer), is used to send a copy of network packets seen on one switch port (or an entire VLAN) to another port where the IDS is connected. This allows the IDS to passively inspect network traffic without interfering with the actual traffic flow. Port mirroring is an essential feature for implementing IDS in a network for traffic analysis and security monitoring.References:
CompTIA Network+ study materials.
質問 # 58
To reduce costs and increase mobility, a Chief Technology Officer (CTO) wants to adopt cloud services for the organization and its affiliates. To reduce the impact for users, the CTO wants key services to run from the on-site data center and enterprise services to run in the cloud. Which of thefollowing deployment models is the best choice for the organization?
- A. Hybrid
- B. Public
- C. Private
- D. SaaS
正解：A
解説：
A hybrid cloud deployment model is the best choice for the CTO's requirements. It allows the organization to run key services from the on-site data center while leveraging the cloud for enterprise services. This approach provides flexibility, scalability, and cost savings, while also minimizing disruptions to users by keeping critical services local. The hybrid model integrates both private and public cloud environments, offering the benefits of both.References:CompTIA Network+ study materials and cloud computing principles.
質問 # 59
......
N10-009試験問題集でPDF問題とテストエンジン：https://www.passtest.jp/CompTIA/N10-009-shiken.html
N10-009問題集で必ず合格させる試験：https://drive.google.com/open?id=174XqsfLkjUaiyYmMF2GvtM7RENyQVXcz
