認定試験では、MPLS VPNテクノロジー、BGP、OSPF、IPv6、QoS、高度なスイッチングテクノロジーなどのさまざまなトピックをカバーしています。この試験は、高度なルーティングと切り替えに関連する概念、プロトコル、および技術に関する候補者の理解をテストするように設計されています。この試験に合格すると、候補者は、Huaweiデバイスを使用して複雑なネットワークソリューションを設計および実装するために必要なスキルと専門知識を持っていることを示しています。この認定は、高度なネットワーキングテクノロジーとソリューションを使用する候補者の能力を実証するため、雇用主によって非常に高く評価されています。
Huawei H12-831_V1.0 (HCIP-Datacom-Advanced Routing＆Switching Technology V1.0)認定試験は、高度なルーティングおよびスイッチング技術の分野でキャリアアップを望むITプロフェッショナルにとって貴重な資格です。この試験に合格することで、候補者は、Huaweiデバイスと技術を使用して複雑なネットワークインフラストラクチャを構築および管理するスキルと知識を証明できます。
Huawei H12-831_V1.0-ENU試験では、高度なIPv4およびIPv6ルーティングプロトコル、BGP、MPLS VPN、マルチキャストプロトコル、高度なスイッチング技術など、幅広いトピックをカバーしています。候補者は、複雑なネットワークインフラストラクチャの展開と管理におけるネットワーキングの基礎と経験を確実に理解することが期待されています。この試験は、60の複数選択の質問で構成されており、90分間の期間があります。試験に合格した候補者には、高度なルーティングとスイッチングテクノロジーの専門知識の証としてグローバルに認識されているHCIP-Datacom-Advanced Routing＆Switching Technology v1.0認定が授与されます。
質問 # 88
To ensure security, authentication can be configured in the OSPFv3 process area view.
- A. TRUE
- B. FALSE
正解：A
質問 # 89
By default, which of the following types of secure MA, C addresses will be lost when the device restarts?
- A. Sticky MA, Caddress
- B. black holeMA, Caddress
- C. Security DynamicsMA, C 1W
- D. Safe staticMA, Caddress
正解：C
質問 # 90
Which of the following is not part of the preliminary preparations for the cutover plan?
- A. Risk assessment
- B. On-site defense
- C. Introduction to the current network
- D. Cutover target
正解：B
質問 # 91
As shown in the figure, PE1 and PE2 and their respective CEs exchange private network routing information through OSPF, and the same DomainID is configured on PE1 and PE2. When routes are imported from BGP to OSPF on PE2, which of the following types of SA may be delivered to CE2? (Multiple choice)
- A. Type3 LSA
- B. Type1 LSA
- C. Type5 LSA
- D. Type7 LSA
正解：A、C、D
質問 # 92
As shown in the figure, Client1 and Client2 act as clients of RR1 and RR2 at the same time, RR1 and RR2 are in the same Cluster, and R has introduced 10 routes. Assume that the BCP configuration is correct.
The neighbor relationship has been established. How many routing entries are there in the BGP routing table of Client2 ultimately?
- A. 0
- B. 1
- C. 2
- D. 3
正解：B
質問 # 93
On the OSPF network shown in the figure, the cost values of links are marked, and OSPF IP FRR is enabled on R1. Which of the following statements is false?
- A. If the link between R2 and SI is disconnected, R1 recalculates the optimal path to R3 and performs path switching instantly.
- B. If the link between R1 and SI is disconnected and you check neighbor information on R1, the neighbor relationship between R1 and R2 will instantly display Down.
- C. If the link between R1 and SI is disconnected, R1 directly uses the backup path to forward packets to R3 because FRR is enabled on R1.
- D. If the link between R1 and SI is disconnected, Rl recalculates the optimal path to R3 and performs path switching instantly.
正解：D
質問 # 94
During an attempt to log in to a NetEngine AR6120 through the console port, the network engineer finds that the password is incorrect and the login fails. If a Telnet account can be used to log in to the device and the account has the permission to change the console port password, the network engineer can log in to the device through Telnet to change the console port password.
- A. TRUE
- B. FALSE
正解：A
質問 # 95
In addition to the virtual link, what type of IPv6 address is the source IPv6 address of the He11o packet of OSPFv3?
- A. Global unicast address
- B. Link local address
- C. IPv6 anycast address
- D. Unique local address
正解：B
質問 # 96
Regarding the label space of MPLS, which of the description is wrong?
- A. When the penultimate hop LSR performs label switching, if the value of the label after the exchange is found to be 3, the label will be ejected by default and the packet will be sent to the last hop
- B. 16~1023 is the label space shared by static LSP and static CR-LSP
- C. If the outgoing label value is 0, the router will directly discard the packet
- D. 1024 or more is the label space shared by dynamic signaling protocols such as LDP, RSVP-TE, MP-BGP, etc.
正解：C
質問 # 97
Which of the following descriptions about MPLS header TTL are correct? (Multiple choice)
- A. There are two ways to correct MPLST and TTL. One is to copy the TTL value of the MPLS header when an IP packet enters the MPLS network. The other is to set the TTL of the MPLS header to 255 at the ingress LER.
- B. In the case of banning Bay TTL, tracert can see the LSR of the MPLS domain that it passes through
- C. Can prevent infinite loop forwarding of messages
- D. The processing method of copying the IP TTL value hides the LSR of the MPLS domain and plays a certain security role
正解：A、C
質問 # 98

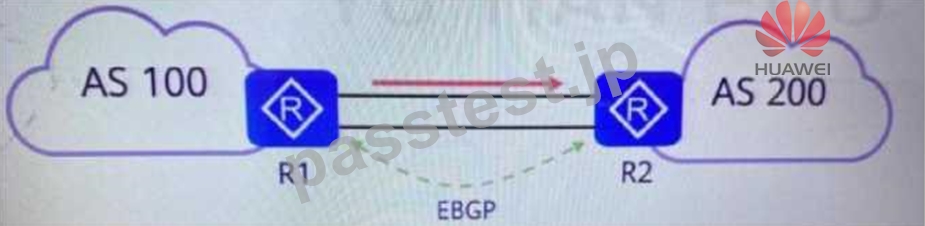

As shown in the figure, on the R1 router, network administrator A sends the routing entry to R2 through the routing policy After modifying the Local Preference value, you can control the path of traffic leaving the AS100
- A. wrong
- B. Correct
正解：A
質問 # 99
What are the wrong statements about OSPF's Router LSA and Network LSA?
- A. Network LSA, Carry both topology and routing information
- B. runOSPFThe router must generateRouter LSA
- C. runDSPFThe router must generateNetwork LSA
- D. OSPFmust exist in the networkRouter LSAandNetwork LSA
正解：C、D
質問 # 100
What is the Router-ID of OSPFv3?
- A. 64-bit value
- B. 32-bit value
- C. 100-bit value
- D. 128-bit value
正解：B
質問 # 101
As shown in the figure, an engineer uses 4 routers to test branch network interoperability. Among them, R1, R2, and R3 in branch 1 deploy OSPF to implement network interoperability. R2, R3, and R4 in branch 2 deploy IS-S to implement network interoperability. Now the engineer wants to implement R1 to access the loopback interface address of R4. Which of the following operations can meet this requirement?
- A. No configuration required
- B. only atR2ofOSPFDuring the process, the default route is advertised
- C. existR2ofOSFFprocess neutralizationIS-ISDuring the process, the default route is advertised separately
- D. only atR2ofIS-ISDuring the process, the default route is advertised
正解：C
質問 # 102
Regarding the description of the label encapsulation format in MPLS, which one is correct? (Multiple choice)
- A. The TTL field in the label is similar to the TTL (Time To Live) in the IP packet, and it also has the effect of preventing loops.
- B. The total length of a single MPLS label is 4 bytes (32 bits)
- C. The S field in the label: 1 bit, used to identify whether the label is a label at the bottom of the stack, when the value is 1, it is the penultimate layer label
- D. For Ethernet and PPP packets, the label stack is located between the layer 2 header and the data like the "underlay*": when there is a VLAN tag, the MPLS header is placed between the Ethernet header and the VLAN tag
正解：A、B
質問 # 103
According to this picture, what can we judge? (Multiple choice)
- A. The device whose system-ID is ee8c. a0c2.baf2, and its type is Level-1-2
- B. R4 belongs to Level-1 only
- C. The device with system-ID ee8a0c2.baf2, its type is Leve1-1
- D. R4 belongs to Leve1-2 only
正解：A、B
質問 # 104

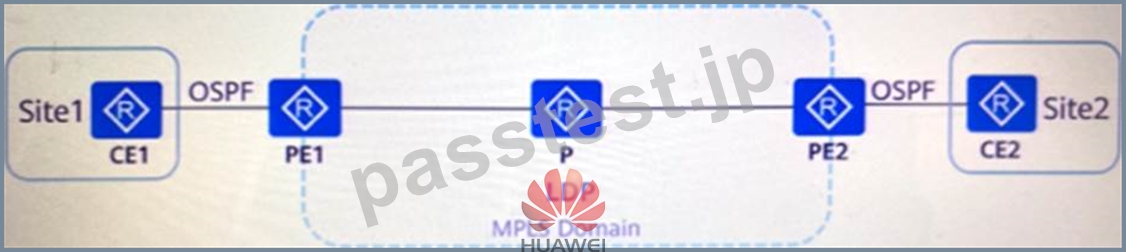

The OSPF protocol runs between CE and PE, when CE1 advertises the route of the site to CE2. Which of the following description is wrong?
- A. When PE2 receives a BGP route from PE1 that carries a different Domain ID from the local one, it is correct for all LSAs, and PE2 will generate Type5 LSA or Type7 LSA
- B. When PE2 receives the same Domain ID as the local BGP route sent by PE1, for Type3 LSA, PE2 will generate Type5 LSA
- C. When PE2 receives the same Domain ID as the local BGP route sent by PE1, PE2 will generate Type3 LSA for Type1 LSA and Type2 LSA
- D. The Domain ID configured by PE1 can be used as an extended community attribute of BGP and sent along with the route to PE2.
正解：B
質問 # 105

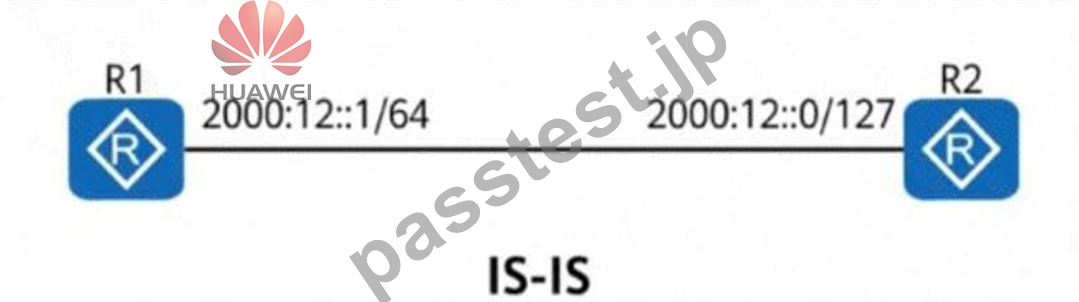

On the IS-IS IPv6 network shown in the figure, after the network becomes stable:
* R1 can ping 2000:12::0, and
* The display ipv6 neighbors command can be used to display the MAC address corresponding to
2000:12::0.
Is this statement TRUE or FALSE?
- A. FALSE
- B. TRUE
正解：A
解説：
Comprehensive and Detailed In-Depth Explanation:
Understanding the IPv6 Addressing and IS-IS Network
* IPv6 Addressing in the Figure:
* R1 has the address: 2000:12::1/64
* R2 has the address: 2000:12::0/127
* The link between them is using a /127 subnet (2000:12::0/127).
* Behavior of IPv6 /127 Subnet Mask
* In IPv6, a /127 prefix is commonly used on point-to-point links to avoid the issue of subnet- router anycast (::0).
* RFC 6164 recommends using /127 instead of /64 for point-to-point links to reduce unnecessary anycast behavior.
* 2000:12::0 is the network address (first address in the subnet) and is not assigned to an interface.
Analyzing the Two Statements in the Question
Statement 1: "R1 can ping 2000:12::0" # (Incorrect)
* In IPv6, the first address (::0) in a /127 subnet is typically reserved as a network address and not assigned to any router.
* R1 cannot ping 2000:12::0 because it is not assigned to R2 as an active IP.
* Correct ping targets would be:
* R1 pinging R2's actual address (2000:12::1 or 2000:12::2 depending on numbering).
Statement 2: "display ipv6 neighbors command can be used to display the MAC address corresponding to 2000:12::0" # (Incorrect)
* The display ipv6 neighbors command is used to show the MAC address of an active neighbor (i.e., a reachable device).
* Since 2000:12::0 is not assigned to a specific router, it will not have a MAC address in the neighbor table.
Final Conclusion:
# R1 cannot ping 2000:12::0 because it is the network address in a /127 subnet.# The display ipv6 neighbors command cannot show a MAC address for 2000:12::0 because it is not assigned to a router.
Thus, the correct answer is: B. FALSE.
